EPCS209
Battery-Integrated DC Fast Charging Station
All-in-One Design
The pre-integrated system speeds up installation and commissioning. All key components are designed to work seamlessly as a single entity.
Safe & Certified
LFP battery technology, IP55/C4 protection, and international safety certifications ensure reliable operation even in demanding environments.
Long Lifespan
Active liquid cooling keeps the cells at optimal operating temperature, improving efficiency and extending the system's lifespan.
Modularly expandable
The system grows with your energy needs. Multiple units can be combined into larger systems without replacing the entire system.
Smart Energy Management
Supports solar power, grid, backup power, and other energy sources. Intelligent control automatically optimizes energy use for various purposes.
Fast Commissioning
The factory pre-configured and tested system shortens installation time and reduces commissioning risks. Operation is easy from day one.

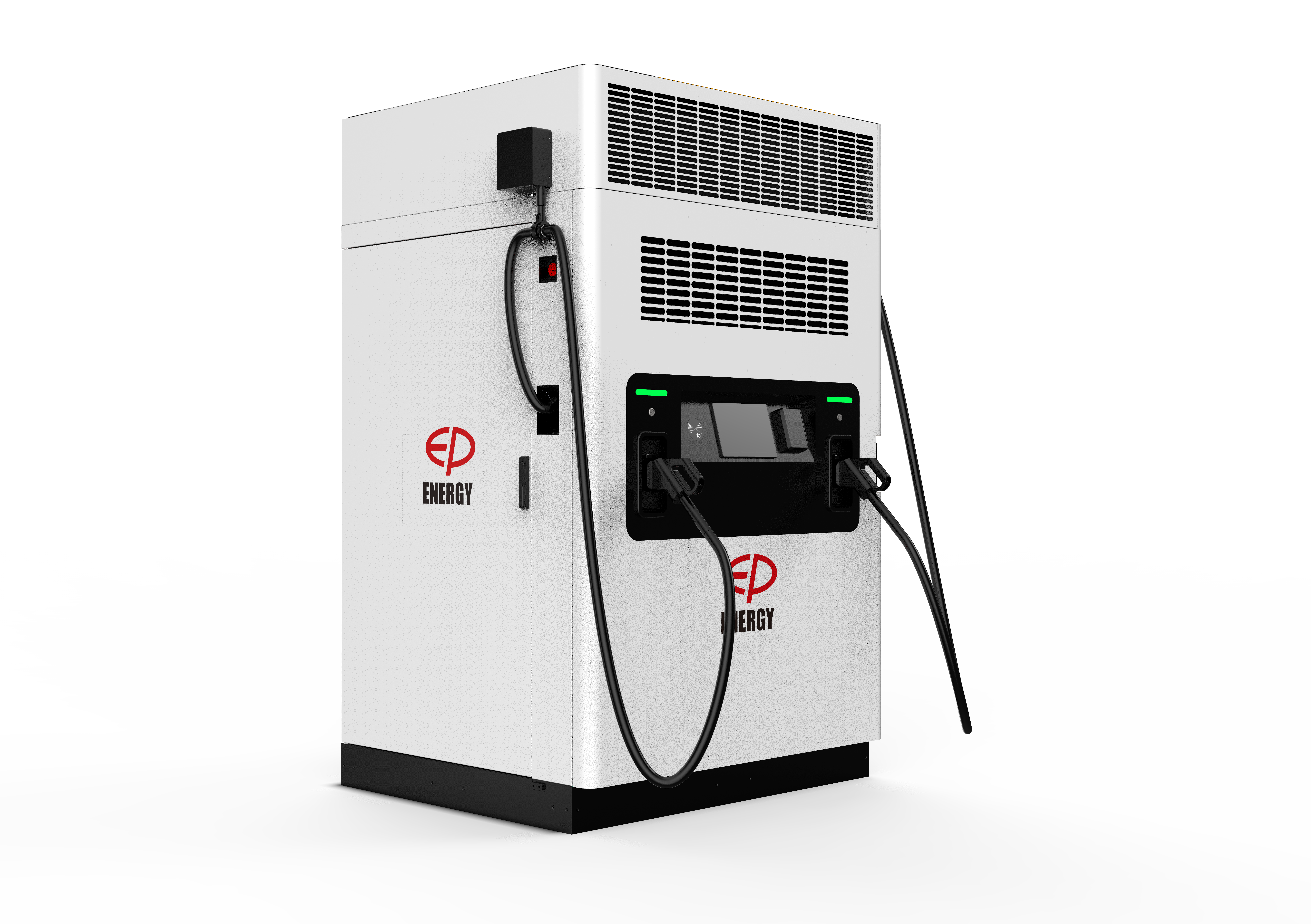

EP Energy EPCS209 – Battery-integrated DC fast charging station
EP Energy EPCS209 is a new generation battery-integrated DC fast charging station that combines a 209 kWh energy storage and up to 240 kW fast charging into one intelligent unit. The internal energy storage enables high-power charging without the need for the property to have an equivalently sized grid connection.
The system is particularly suitable for sites where efficient electric car fast charging is desired while reducing the load on the grid connection, cutting peak loads, and optimizing energy use.
Why choose EPCS209?
Traditional high-power charging often requires a very large grid connection, which can significantly increase investment costs. EPCS209 solves this challenge by utilizing a built-in energy storage that stores energy at a lower power and discharges it quickly during electric car charging.
This allows the charging station to provide up to 240 kW fast charging, even if the property's electricity connection is significantly smaller. At the same time, the system helps to balance electricity consumption, reduce power charges, and take advantage of low electricity prices.
Batteries, PCS inverter, BMS, EMS, and liquid cooling in one pre-installed cabinet — accelerates commissioning and minimizes installation connection points.
High energy density LFP cells, low-loss PCS, and precise liquid circulation maintain peak efficiency in both charging and discharging cycles.
EPCS209 utilizes its own 209 kWh battery storage to support charging power. The solution enables up to 240 kW DC fast charging even in locations where the grid capacity alone would not be sufficient for similar charging power. At the same time, the energy storage cuts peak loads, reduces connection costs, and optimizes electricity use.
Liquid circulation and air cooling, and liquid circulation heating keep battery temperatures optimal across a wide temperature range — from Nordic frosts to summer heatwaves.
Multi-level BMS protection, aerosol fire suppression, continuous remote monitoring, and seamless transition between grid-connected and island modes.

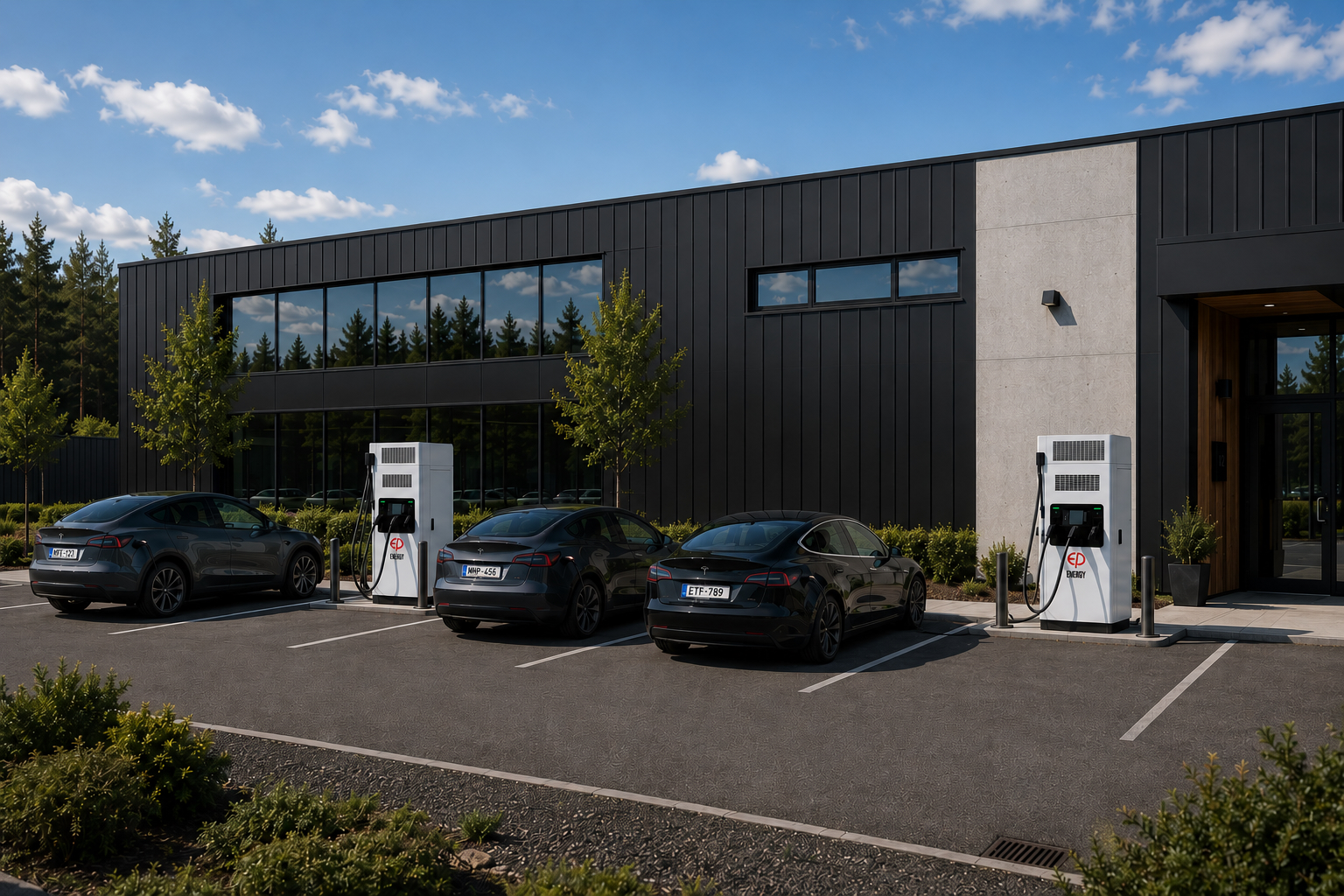

EPCS209 is excellently suited for: company parking lots, service stations, shopping centers, logistics and transport companies, public charging points, car dealerships, and sites with limited grid connection capacity.
Technical Specifications
Key Features
- Lataus- ja purkuteho
- 240 kW DC-pikalataus (2 × 120 kW)
- Energiakapasiteetti
- 209 kWh integroitu LiFePO₄-akku
- Kennokemia
- LFP (litiumrautafosfaatti)
- Jäähdytys/lämmitys
- Nestekiertojäähdytys ja -lämmitys
- Käyttölämpötila
- −30 °C … +50 °C
- Operaattorit
- OCPP 1.6J / 2.1 -yhteensopivuus latausoperaattoreille
- Latausjärjestelmä
- CCS2-kaksoislataus kahdelle ajoneuvolle samanaikaisesti
- Suojausluokka
- IP54-suojaus ulkokäyttöön
- Käyttöhallinta
- 10" kosketusnäyttö sekä RFID-tunnistus
- Verkkoliitäntä
- 3-vaiheinen 400 V AC, 50 Hz
Detailed dimensioning values can be found in the downloadable datasheet.
